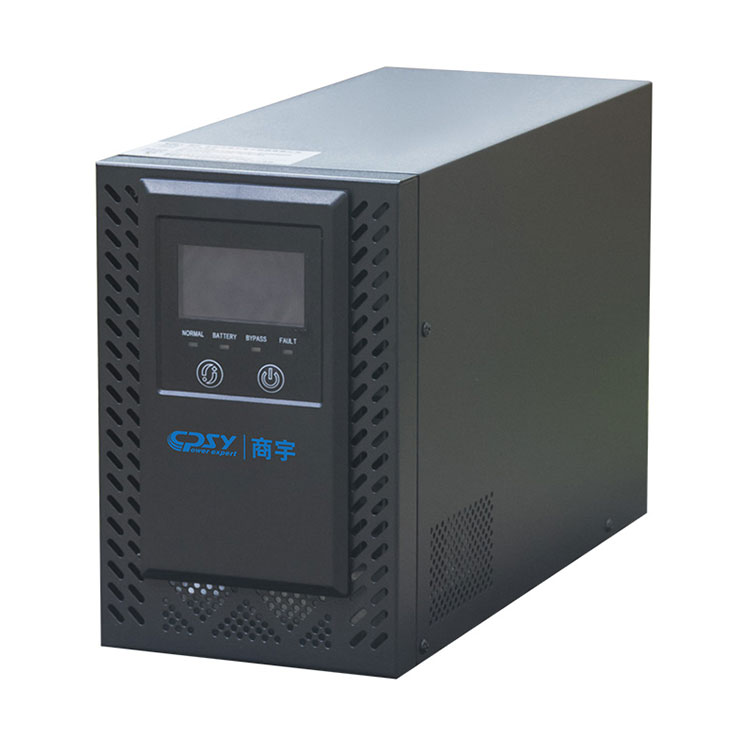

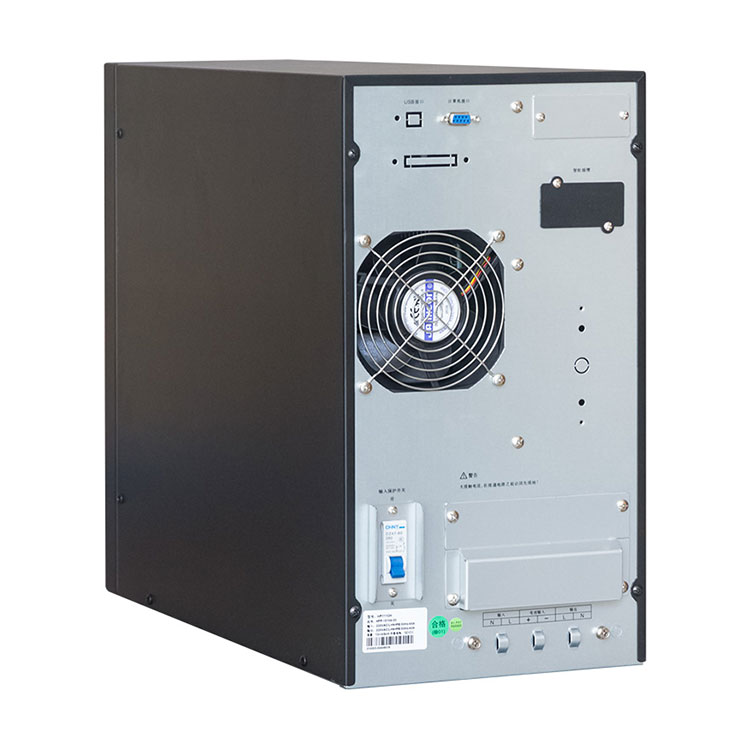

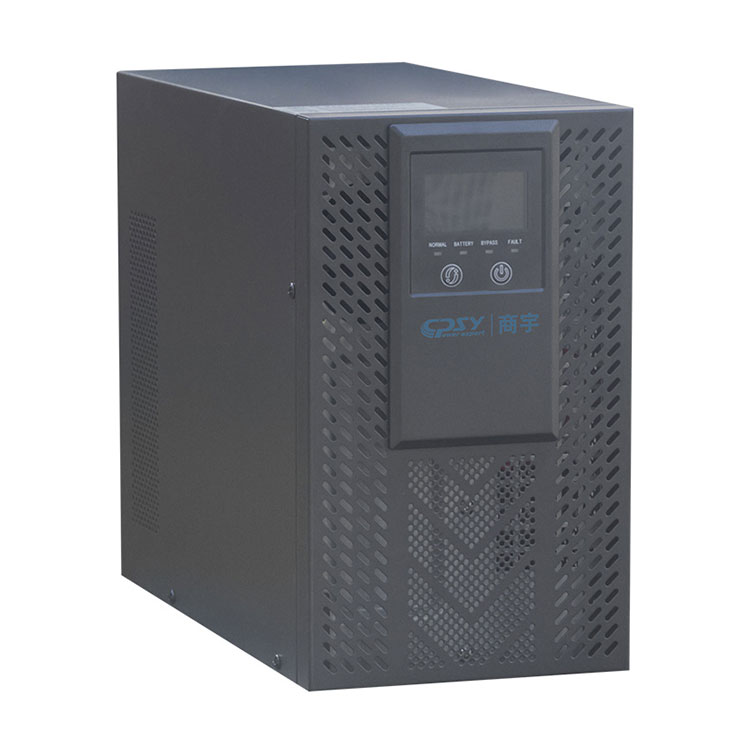

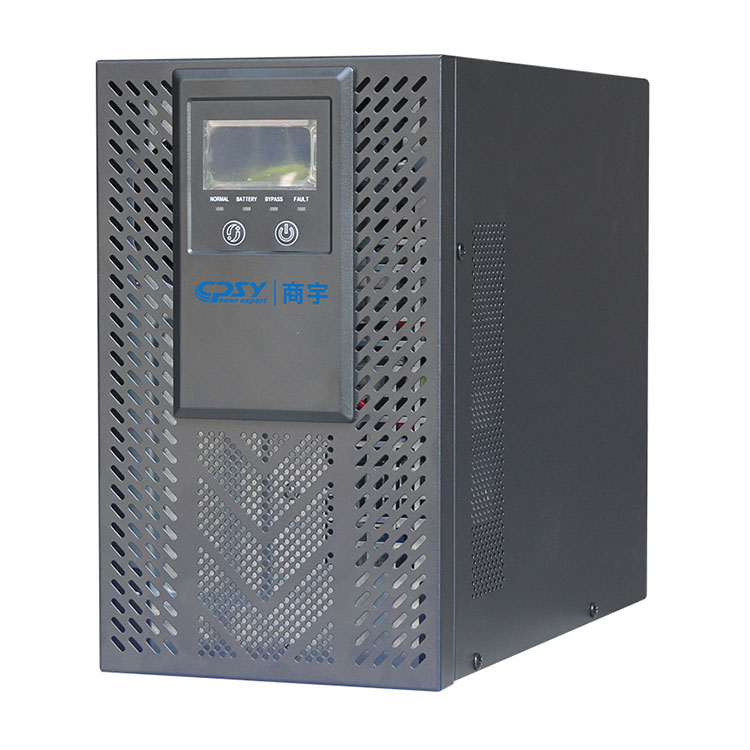

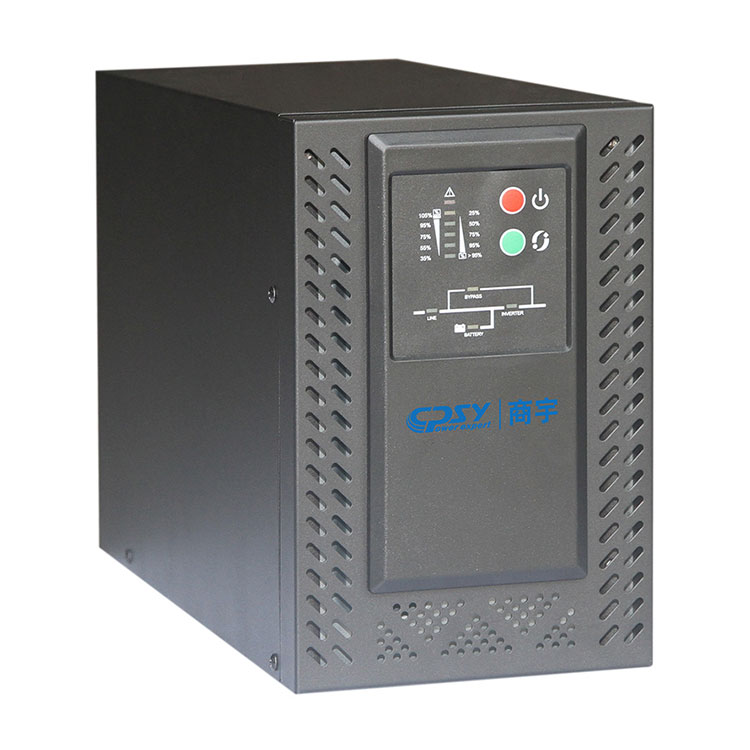

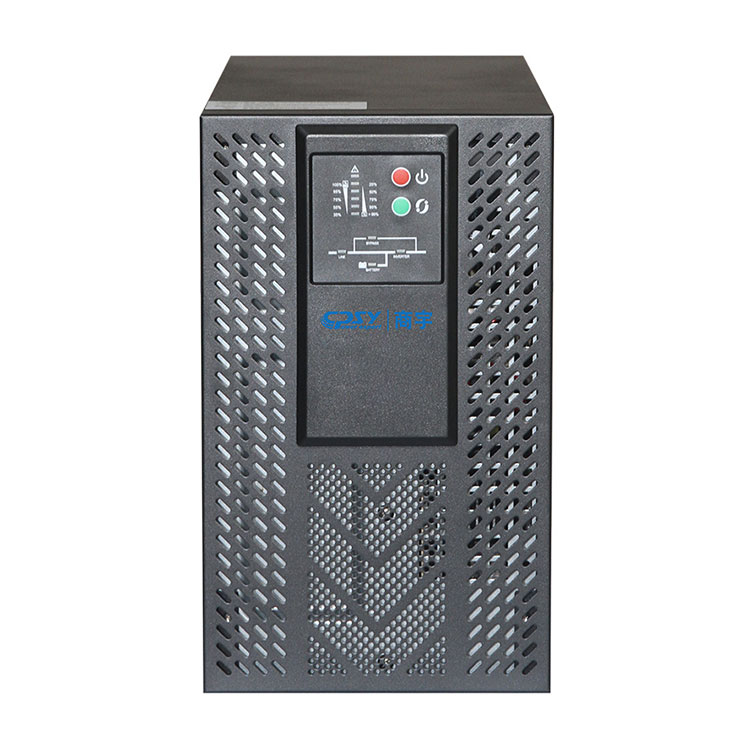

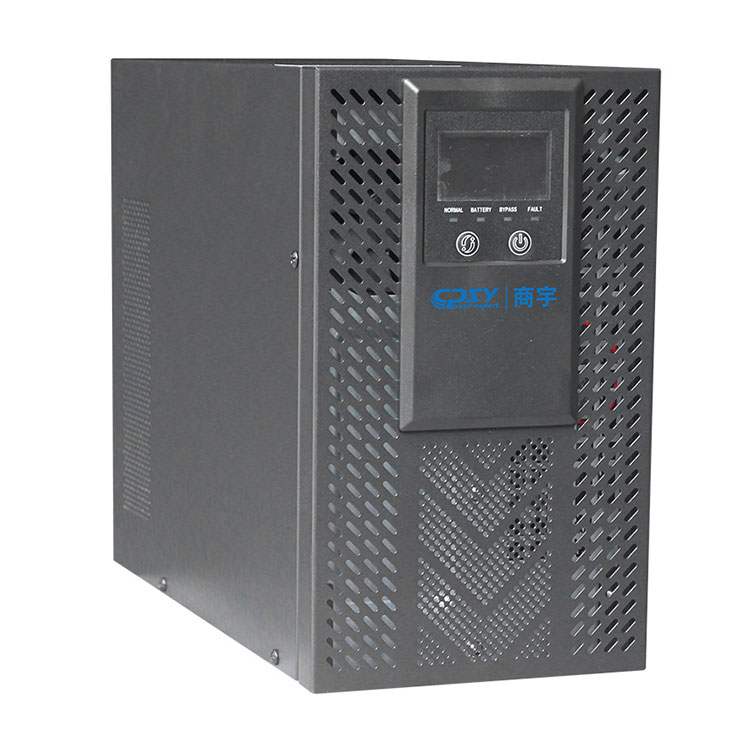

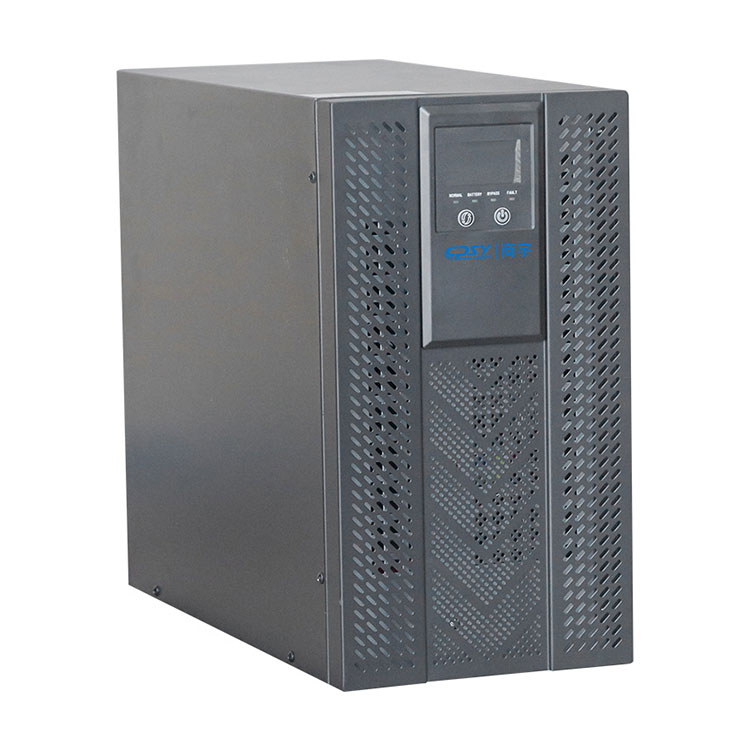

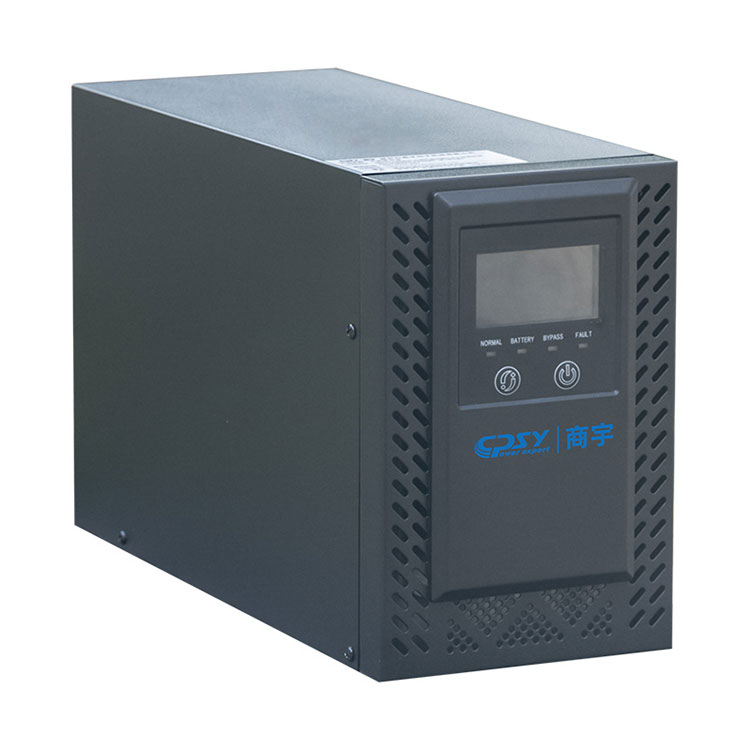

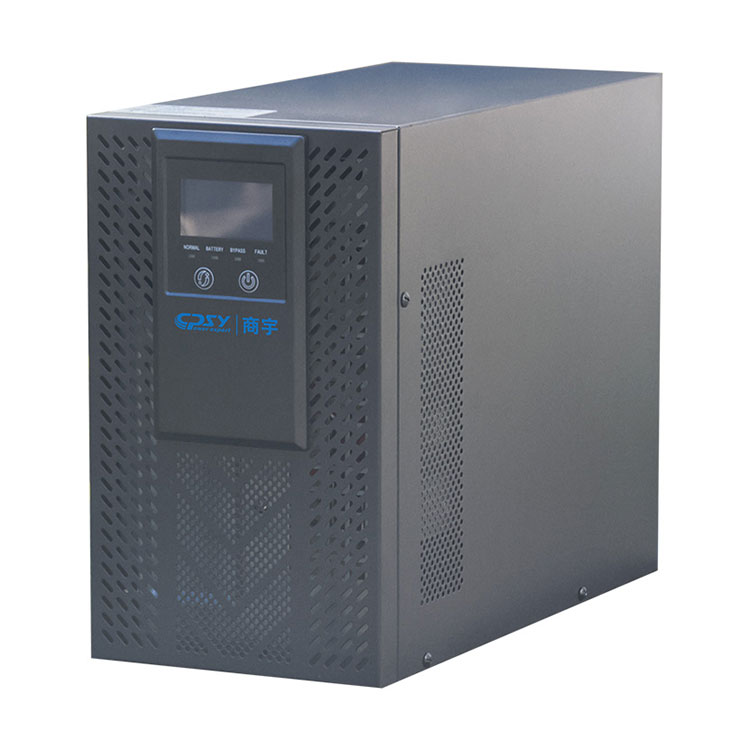

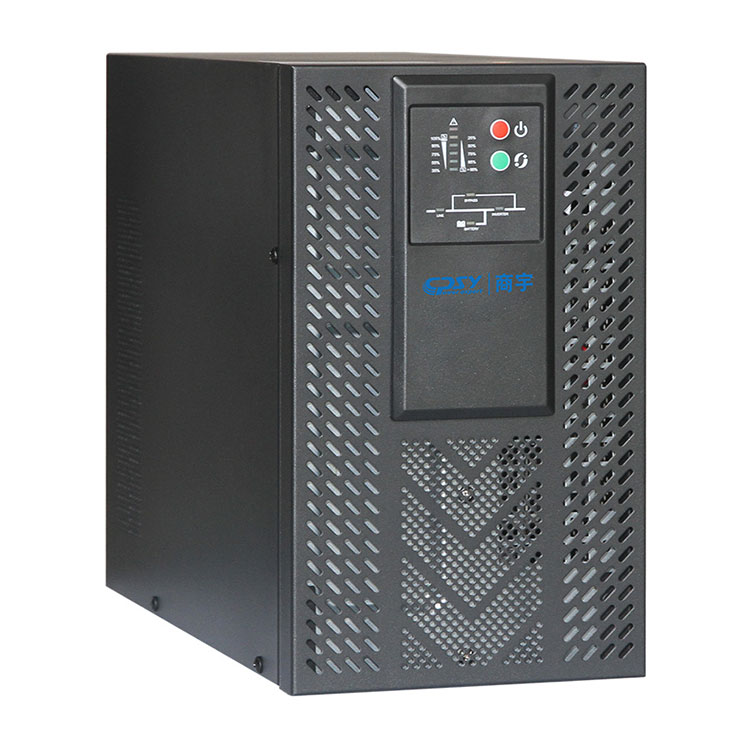

Online Transformerless Commercial UPS

CPSY® fabrica professionalis Online Transformerless Commercial UPS commeatuum est. In Shenzhen sita sumus et capitis descripserunt $2.3 decies centena millia et area productionis XXV 000 metrorum quadratorum. Nostram habemus R&D iugales plusquam XXX R&D fabrum cum plusquam XX patentibus, et XV% vectigal venditionesque singulis annis ad R&D investigationes ponemus. Cum stricta qualitatis temperantia ratio et omnes fructus nostri UPS cum CE, TLC, CQC et plus conveniunt. testimoniales. Intendimus continue offerre emptorem nostrum stabilem et firmam, puram et magnificam virtutem.

Mitte Inquisitionem

depictio producti

CPSY® Uninterruptible Power Supple

Hoc CPSY® Online Transformerless Commercial UPS novissima inventio est nobilissimarum qualitatum ups productorum, discursarum ab 400va ad 800KVA vagantium, quae CE, ROHS, IEC, BS, UL, TUV, SAA obsequuntur et cum warantia 2 annorum venit. . CPSY® Online Transformerless Commercial UPS e metallo + PCBA factum est, quod designatum est ad postulationes potentiae maxime necessarias, facile ad instituendum et conservandum. Componit tardus altae industriae efficientiam technologiam et densitatem technologiarum potentiae magnae attingens parvitatem, stabilem effectus et competitive pretium pro UPS productos.

CPSY® Online Transformerless Commercial UPS Parameter (specificatio)

Exemplar	HP1101B	HP1101H	HP102B	HP1102H	HP1103B	HP1103H	HP1106B	HP1106H	HP1110B	HP1110H
capacitas	1KVA/0.8KW		2KVA/1.6KW		3KVA/2.4KW		6KVA/5.4KW		10KVA/9KW
I / O modus	1/1 tempus
Opus modus	Verum duplex conversionem online ups
genus install	Turris
INPUT
Voltage	220VAC
Voltage Range	115~300VAC						120~275VAC
Frequentia Range	50/60Hz±10%						50/60Hz±10%
Potestas Factor	≥0.996
Breaker	10A (Resettable overcurrent praesidium fabrica) (Latin)		16A (Resettable overcurrent praesidium fabrica) Latin）		20A (Resettable overcurrent praesidium fabrica) (Latin)		40A1P（Standard）		63A/1P
REFERO
Voltage	220/230/240V：≤±2%						220/230/240V：≤±1%
Frequentia Range	50/60Hz：≤±0.5%
Potestas Factor	0.8 (Nota: temperatus ambiens cum sit minor quam 30 gradus, mutari potest ad 0.9)						0.9
Transfer Tempus	0ms
ONERO	105%-125% : 1min, 125%-150% : 30s, >150% : 500ms						105%-125% : 10min, 125%-150% : 30s, >150% : 500ms
Breaker	No
Ruptor facultatem	10A*2 Sockets		10A * IV Sockets		10A * III Sockets + terminus obstructionum		terminatio obstructionum
PUGNA
Type altilium	VALR altilium
Pugna intentione	24V（2pcs）	36V（3pcs）	48V（4pcs）	72V（6pcs）	72V（6pcs）	96V（8pcs）	180V（15pcs）	192V（16pcs）	192V（16pcs）	192V（16pcs）
Pugna Capacitas	2* 12V9AH	Externi altilium	4* 12V9AH	Externi altilium	6* 12V9AH	Externi altilium	15* 12V7AH	Externi altilium	16* 12V9AH	Externi altilium
dato currente	1A	6A	1A	6A	1A	6A	1A	4.5A	1A	4.5A
Is dato Current Populus Novifacta	Nullum subsidium
Tergum tempus (@ 50% onus	10min	/	10min	/	10min	/	8min	/	8min	/
altilium ruptor	No
Frigus Committitur	Support
Nulla altilium potestate ad munus	Support						Non Support
SIGNA
Efficientia	≥88%						≥90.5%
salus	EN 62040-1
EMC	EN 62040-2
Testimonium	TLC/CECP/CE/RoHS
IP	IP20
Officium
EPO	Non Support						Support (Libitum accessiones MSP-00238-00)
ECO	Non Support						Support
Frigus Committitur	Support						Support
bypass	No						Libitum (in-structum)		Libitum (in-structum)
bypass ruptor	No						MSP-00235-00（2P 63A）		MSP-00136-00（2P 63A）
Parallel	Non Support						Support（Max 3pcs）
Parallel participatur altilium sarcina	Non Support						Non Support
Communicationis
Imperium Panel	DUXERIT+LCD Display						LCD+DUXERIT Display
Communication port	Standard RS232, ad libitum SNMP card, AS400 Nullam card
SNMP Vide NO.
Nullam card Serial NO.	MSP-00243-00（Cum card socors）
PHYSICAL
WDH	145350228（mm)		190* 395* 328(mm)				248526615（mm）	240* 518*459（mm）	248526615（mm）	240* 518*459（mm）
Net Weight（KG	9.6	4.9	17.5	8.3	23	8.9	55	19.2	63	20
Vox Level (1m Minus)	50dB(1m)						＜55dB(1m)
ENVIRONMENT
Operatio temperatus	0-40℃
operatio Umor	10-95% RH
Repono temperatus	-25-55℃
Repono humiditas secundum quid	0-90% RH，No condensationem

CPSY® Online Transformerless Commercial UPS Feature et Application

HP11 series 1-3kva unum tempus Online Transformerless Commercial UPS（ups）

Exemplar: HP1101B(H)/HP1102B(H)/HP1103B(H)

UPS potentia range: 1KVA~3KVA

Features:

- Provectus operis modus

DSP digital control Technology, summus perficientur

-- Praesidium comprehensivum et certum

potest efficaciter solvere problemata potentia 9 sicut potentia defectum, fluctuum, transiens, spiculum, etc.

- Consilium optimizing altilium pack

1KVA--24VDC/36VDC(optional)2KVA---48VDC/72VDC(optional)3KVA--72/96VDC(optional)

-- Munus extensio patinae

currentem currentes 1-4A est, subsidium extenditur ad 8A .

-- Mores valoris additi

potest extendere warantum servitium ad 3years,

gratis OEM consilio muneris, consulting service, training service.

-- Intelligentes administratione

RS232/USB sunt ad libitum

- Fortis accommodatio ad environment

onerare facultatem est CXX%

Online duplici-conversio cum plena DSP potestate

IGBT invertere cum output solitudo TRANSFIGURATOR

C% unbalance onus facultatem

Output potentia factor 0.9

Generator compatible

Support altilium frigus satus et auto- sileo cum maius potentia restituitur

ECO modus operandi pro industria salutaris

Superior tutela

● 7 pollices LCD tactus velum, amica humana & machina interface

Front accessum facit sustentationem et postea simpliciorem (60 ~ 120 kVA)

Intelligens munus sui diagnoscentia, omnia genera tutelae defectus, magna capacitas historiae monumentorum reposita

High MTBF (> 200,000 h)

Minimum MTTR (< 0.5 h)

Standard subitis potentia off (EPO)

Standard RS232, RS485, contactus siccum communicatio port

Libitum SNMP communicationis portum

●Libitum N+X redundantia parallela ad VI unitates

● Libitum input filter ad amplio initus potentiae factor

Applicatio:

PC, machina machina argentaria, servo, retis, radiophonicis et televisionis, microcomputer locus, network securitates ripam, stationem insignem, stationem mobilem basim

CPSY® 3kva Standby Uninterruptible Power Supple Details

Quid est aliud a 3kva Standby Uninterruptible Power Supple ups et 3kva inverter?

Item	UPS	Inverters
Consuetudinem	usus est pro domibus, officiis, gubernationibus, commercii vel industrialis	Solus usus est ad normalem sedendum in domos seu systematis solaris
Circuitus	in tribus consistit, rectificator, patina, invertor et moderatoris	duas res continet, invertere et moderatorem
tergum	UPS tergum dare tantum X ad XX minuta, apta ad computatrum tergum et data tutela	3 ad 6 hrs fundatur in pugna et inverto, non aptum ad tergum computatrum, potestatem tergum ut summa domus adjumenta, lumina, fans praebent.
Mora mutandi cum potentia incisa	Negligentia	Microsecond
Tutela	Non opus est Sustentacionem	Oportet implere aquam toppings certis intervallis temporum

Nostra officia

Technical Support Products ratio

1.Provide necessaria omnia technicam et professionem exercere in officina

2. Comprehensivum technicum subsidium praebent prae-ventionibus, in-ventionibus et post-venditionem servitium.

3.Presentation & promotio novae productorum et technologiae

Parce partes systematis warantiae

1.Provide quasdam partes in omni ordine amet parce.

2. Provide liberum sustentationem vel subrogetur parce partes intra tempus datum warantum

3. Technologiam liberam sustentationem provide et partes sub e warantia obnoxias parce.

4. Unius anni warantum pro offline ups et 7-24ah altilium, duos annos warantum pro online ups et 38-90ah altilium, tres annos pro pugna 100ah supra.

5.Provide ut expectata warantum extensum

Valorem-added Services

1.Provide diu sustentationem ministerium

2.Provide ordo OEM/ODM, munus etiam nativus ad solutionem discursantium et ad centrum datae

3.Provide sustentationem regularis servitutis.

Stipare singula:

EXEMPLUM NO.	HP1101B/HP1101H	HP1102B/HP1102H	HP1103B/HP1103H
QTY/CTN	1pcs	1pcs	1pcs
Unitas Size	360x146x227mm	400x193x327mm	400x193x327mm
Net Pondus	9.9KG/5.2KGS	17.7KG/8.6KGS	23.2KG/8.7KGS
Lobortis Size	435x236x346mm	495x328x460mm	495x328x460mm
Crassa Pondus	10.7KG/6.2KGS	19.1KG/9.6KGS	25KG/10.3KGS
20FT Continens	560PCS	320PCS	320PCS
